Huaheng Robot Tube Sheet Welding System

Product Description

The robot first measures the distance between the gun head and the tube sheet through the laser;

The robot measures the inner diameter and outer diameter of each pipe diameter within the range of 100*100mm by taking pictures. Such multiple pictures can measure the specific positions of all pipes, and perform background calculations;

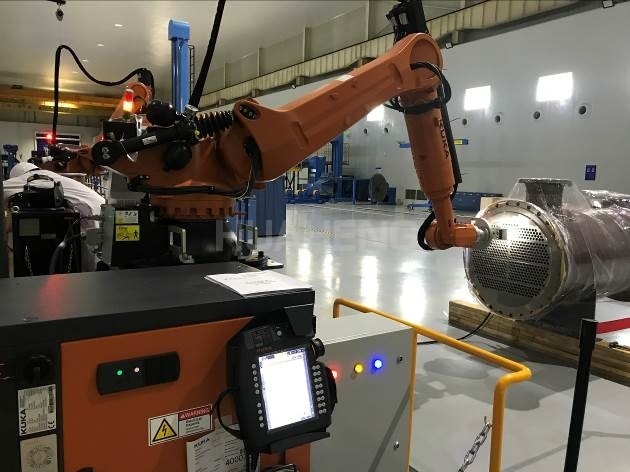

Robotic tube-sheet welding guns reach the desired position on each tube accurately and quickly

The welding program is started, and automatic tube sheet welding is performed. During the welding process, automatic tracking is turned on to ensure smooth welding at all positions;

The robot automatically calculates the number of welds, and when the set number of welds is welded, it will alarm and manually replace the tungsten electrode;

1KG/disk welding wire is used, and the robot alarms and manually replaces the welding wire;

The whole welding process requires no manual intervention (except for changing the welding wire and tungsten electrode);

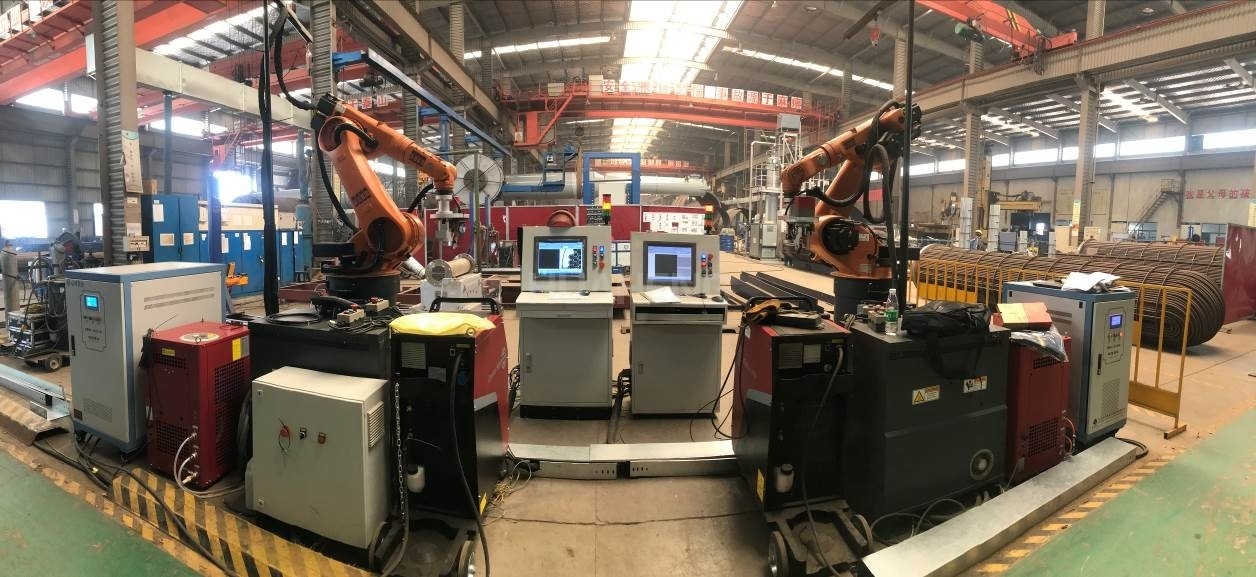

One person can manage the welding of 3-4 robots;
