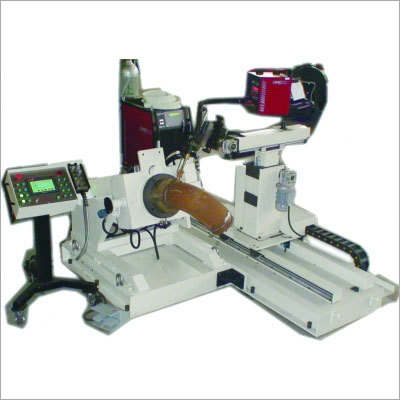

Pipe Welding Stations

8500000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Other
Power 26.8 KVA Watt (w)
Dimension (L*W*H) 774 X 500 X 1135 Millimeter (mm)
Color WHITE
Warranty 1 Year
Production Capacity 3000 kg Kg/hr
Usage & Applications automatic root pass, filling pass, and cap pass. With arc voltage controller (Arc) , monitor and so on.
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Pipe Welding Stations Price And Quantity

Price 8500000 INR/Piece
Minimum Order Quantity 1 Piece

Pipe Welding Stations Product Specifications

Dimension (L*W*H) 774 X 500 X 1135 Millimeter (mm)
Usage & Applications automatic root pass, filling pass, and cap pass. With arc voltage controller (Arc) , monitor and so on.
Product Type Other
Production Capacity 3000 kg Kg/hr
Color WHITE
Power 26.8 KVA Watt (w)
Warranty 1 Year

Pipe Welding Stations Trade Information

FOB Port EXW PRICE
Supply Ability 50 Piece Per Month
Delivery Time 1 Months
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wooden Packing
Main Domestic Market All India

Product Description

Our company is a trustworthy Manufacturer and Supplier of Pipe Welding Stations, which is used for welding pipe to pipe, pipe to tee, pipe to elbow, pipe to flange, etc. The offered range is made by using the highest quality raw material and latest technology, under the instructions of our skilled professionals. Additionally, it can be used for automatic processing of root pass, cap pass, filling pass, in cooperation with arc voltage controller (AVC), etc. Furthermore, the range of Pipe Welding Stations offered by us at pocket-friendly price.

Features of Pipe Welding Stations:

AC servo motor driven, large speed adjustment, quick response, high accurate
Avoid axial jumping during the rotation
Avoid radial jumping during the rotation
Easy load and unload by open design
Gear/sprocket drive for high transmission efficiency, big load ability to adapt to poor working conditions.
Motor-driven three-jaws clamping, automatic centering to minimized labor intensity

Application : Pipe Prefabrication Production Line

Features:

Be widely used in shipbuilding and construction machinery industry
Fixed length solves the issue of automatic root pass processing in pre-fabrication
Modular design for reducing time for designing and producing, beneficial to both production and maintenance
The system is designed for pipe pre-fabrication. The welding station and designing are chosen according to productivity requirement. All welding stations are connected by an effective logistics system, realizing all work processes, e.g. length fixing & cutting, beveling, fitting up, spot welding, root pass welding, filling, and capping, and increasing efficiency of pre-fabrication
Using stable PLC controller to ensure stable welding system work and reduce the fault rate
Welding station can be transported by container, that is easy to meet field operation and relocation requirements

Specification :

Item	KB230	KB370	KB500	KB630	KB760
Rotation Speed (Servo control)	3.7r/min	4.3r/min	3.5r/min	2r/min	2.26r/min
Maximum Torque	2500N.m	2900N.m	7000N.m	20000N.m	20000N.m
Welding Diameter	34230mm	114370mm	219500mm	60630mm	219760mm
Payload	550kg	1300kg	3000kg	5000kg	5000kg
Motor Power	1.3KW	1.3KW	3.0KW	4.4KW	4.4KW
Rotation Center Height	600mm	780mm	950mm	1190mm	1280mm
Dimension	550x440x830	774x500x1135	1000x630x1420	1750x1200x1945	2100x1090x2140
Clamp Method	motor-driven	motor-driven	motor-driven	servo motor driven	manual
